Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications
Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications

Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications

Thông tin chi tiết sản phẩm:
Nguồn gốc: Chu Châu, Trung Quốc
Hàng hiệu: Sanxin
Số mô hình: SX1269
Thanh toán:
Số lượng đặt hàng tối thiểu: 2
Thời gian giao hàng: 5-25 ngày
Điều khoản thanh toán: Liên minh phương Tây, T/T, L/C.
Liên hệ với bây giờ
  • Thông tin chi tiết
  • Mô tả sản phẩm

Thông tin chi tiết
Gia công cacbua: Độ bền cao Vật liệu: Vonfram cacbua
Độ cứng cao: HRA92 Kháng hóa chất: Chống hầu hết các axit và kiềm
Tuổi thọ: Dài Sức mạnh uốn: 1.500 MPa
Bề mặt: Đánh bóng Ứng dụng: Dụng cụ cắt, bộ phận mài mòn, dụng cụ khai thác mỏ, mũi khoan, v.v.
Độ dẻo: Độ dẻo tốt và khả năng máy móc Tính năng: độ bền cao hơn
Dịch vụ: Một bước dịch vụ tùy chỉnh
Làm nổi bật:

HRA92 Hardness Non-magnetic Carbide Rotating Cylinder

,

1

,

500 MPa Flexural Strength WC-Ni Series Carbide Cylinder

Mô tả sản phẩm

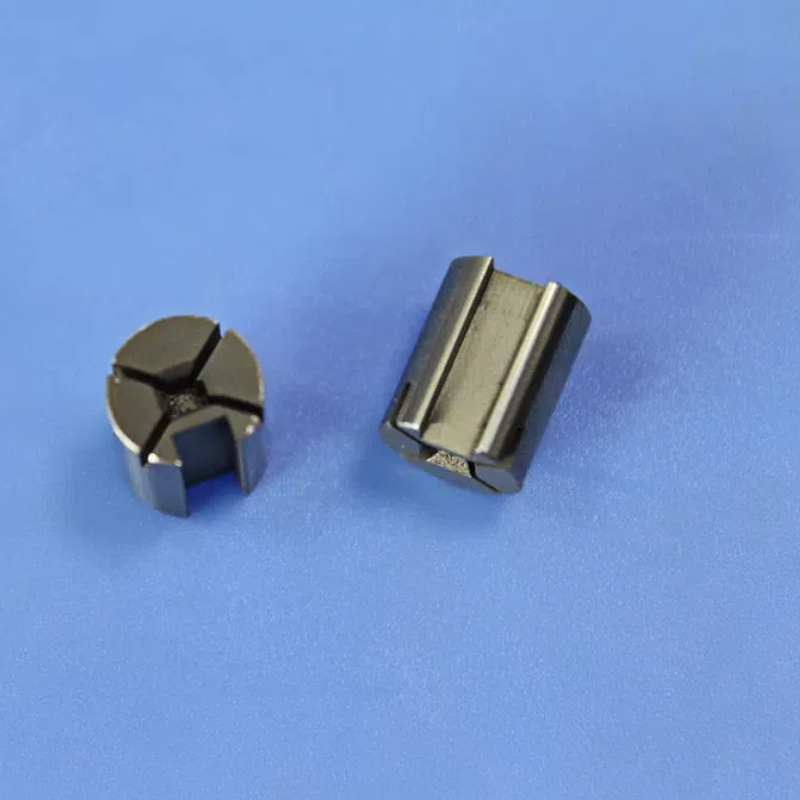

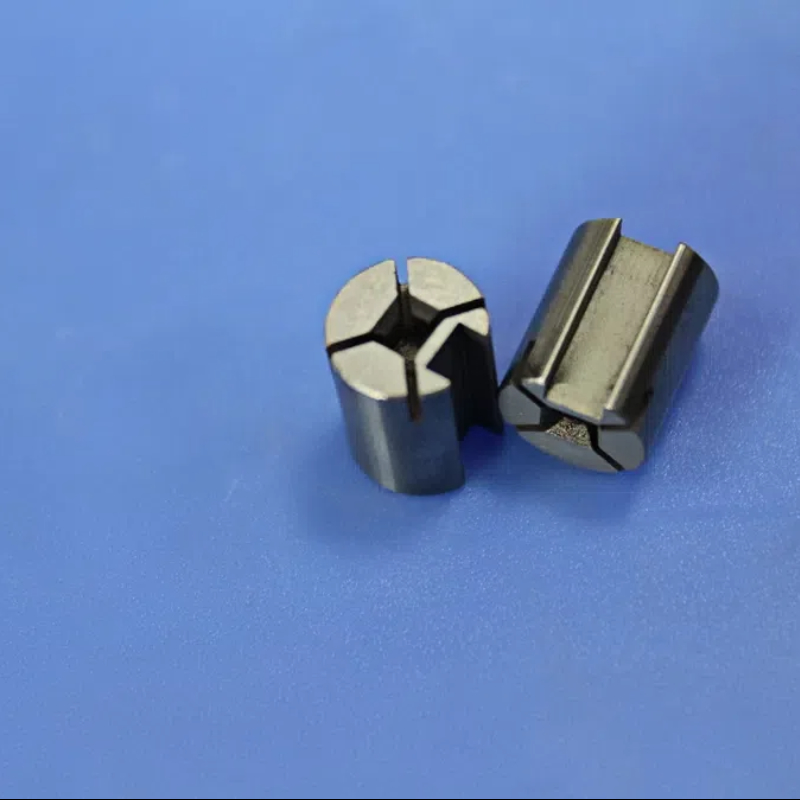

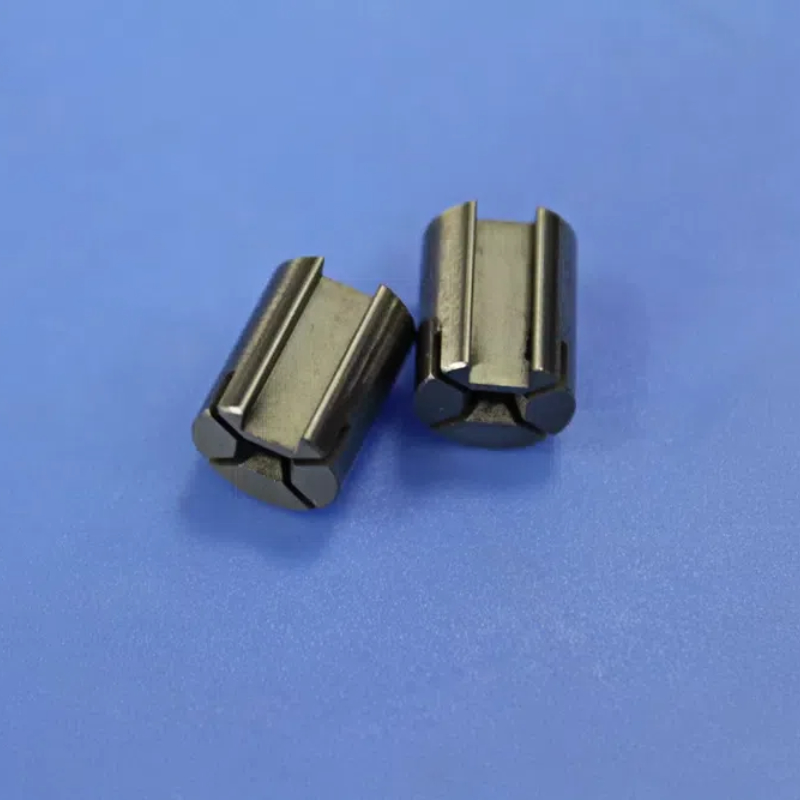

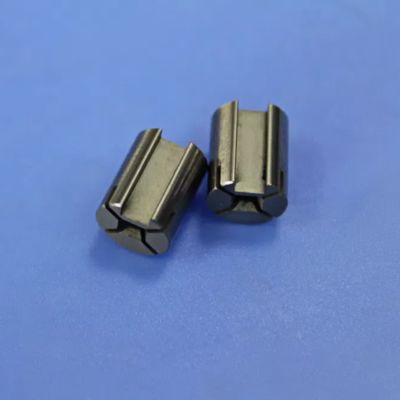

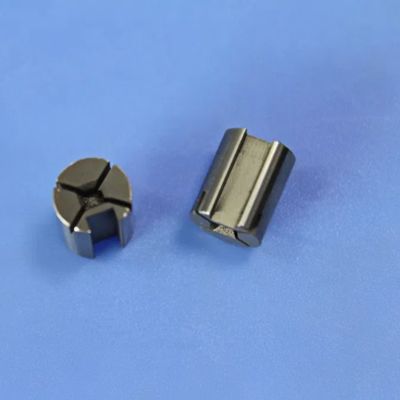

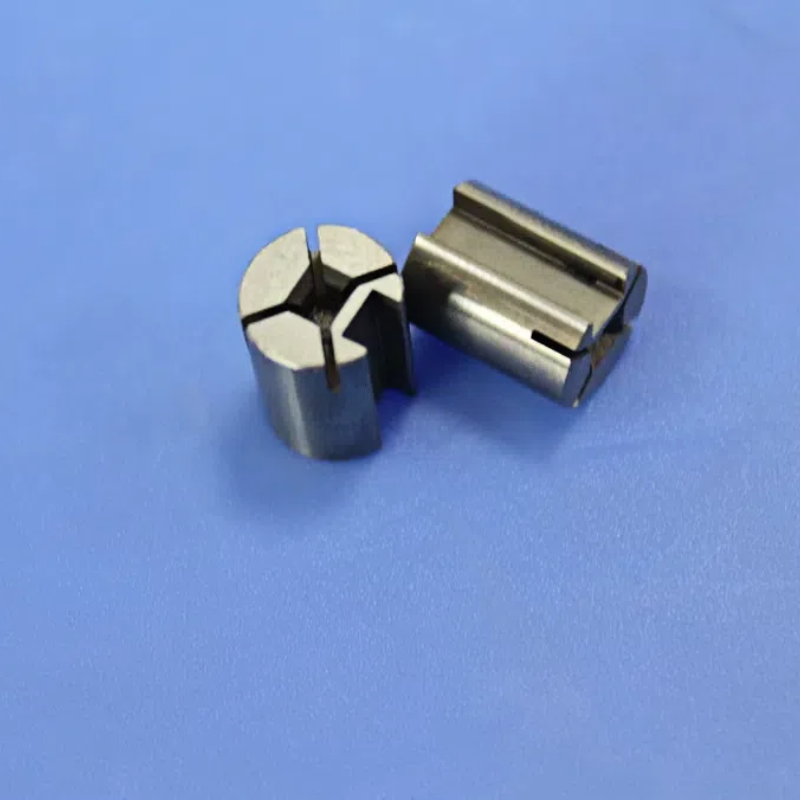

Magnetic Permeability <1.002 WC-Ni Series Non-magnetic Special Research Carbide Rotating Cylinder
The rotating column is precisely manufactured using WC-Ni non-magnetic cemented carbide. By replacing the traditional cobalt element with a nickel-based binder phase, this scientific solution completely eliminates magnetic interference problems found in ordinary cemented carbide. In magnetic field-sensitive environments such as MRI medical equipment, semiconductor manufacturing, and scientific research instruments, it achieves high precision, no magnetic interference, and exceptional stability.
Main Grades of Non-Magnetic Tungsten Carbide
Grade/System Main Components Hardness (HRA) Flexural Strength (MPa) Characteristics and Applications
M10 Non-Magnetic Tungsten Carbide WC-Ni System 92.5 3240 General-purpose non-magnetic molds, corrosion-resistant tools
WC-Ni System WC-0.75Al-14.25Ni 87.4 1670 Non-strongly magnetic at room temperature, relatively high magnetic permeability
WC-Cr₃C₂-Ni System WC-Cr₃C₂-Ni - - Commonly used in industry, with 1-3% Cr₃C₂ addition
WC-Cr₃C₂-Mo-Ni System WC-Cr₃C₂-Mo-Ni - - Adds Mo to improve magnetic properties
MAST-N20 WC-Ni (Japan) 91.0 3300 Highly corrosion-resistant, suitable for nozzles, seals, and molding dies
Grade Selection Tips: The above grades primarily achieve non-magnetic properties by using nickel (Ni) as a binder phase. Different grades have different composition and performance emphases. When selecting, please consider your specific magnetic permeability requirements, hardness, strength, and corrosion resistance.
Core Technologies
  • Non-magnetic Material Design: A nickel-based binder phase ensures non-magnetic properties from the source. Strict composition control prevents the introduction of magnetic impurities.
  • Precision Manufacturing and Processing: Specialized grinding technology tailored to non-magnetic materials ensures dimensional accuracy (±0.002mm) and dynamic balance grade (G1.0).
  • Strict Quality Inspection: 100% magnetic permeability testing ensures every product meets non-magnetic standards. Industrial CT non-destructive testing guarantees internal quality.
Typical Application Scenarios
  • Medical imaging equipment: Rotating components in MRI scanners prevent interference with magnetic resonance imaging.
  • Semiconductor manufacturing: High-precision equipment such as wafer transfer robots and photolithography machines prevent magnetic field effects on microelectronic components.
  • Scientific research equipment: Electron microscopes and high-energy physics experimental equipment ensure measurement accuracy.
  • Aerospace: Satellite attitude control components and aviation instruments meet non-magnetic environment requirements.
Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications 0
