Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications
Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Sanxin
Chứng nhận: ISO
Số mô hình: SX1290
Thanh toán:
Số lượng đặt hàng tối thiểu: 2
Thời gian giao hàng: 5-25 ngày
Điều khoản thanh toán: T/T, L/C, Western Union
Liên hệ với bây giờ
  • Thông tin chi tiết
  • Mô tả sản phẩm

Thông tin chi tiết
Kích thước: Có thể tùy chỉnh (Đường kính trong, Đường kính ngoài, Chiều dài) Chống va đập: Xuất sắc
Cách sử dụng: Ống dẫn hướng, Ống định vị Kích cỡ: Có thể tùy chỉnh, Bản vẽ của khách hàng
Dịch vụ: Dịch vụ tùy chỉnh Dịch vụ OEM: Có thể chấp nhận được
OEM: Có sẵn Độ nhám bề mặt: 1,6 ~ 0,1
hình dạng: Hình thang, hình trụ Nhiệt độ làm việc: -200 ° C ~ +800 ° C.
Chống ăn mòn: Xuất sắc Từ khóa: ống lót cacbua vonfram
Chống ăn mòn: Xuất sắc đóng gói: Gói xuất tiêu chuẩn
Làm nổi bật:

Customizable Dimensions Non-Magnetic Alloy Center Ring

,

Excellent Corrosion Resistance Precision Machined Ring

,

Precision Machined Tungsten Carbide Sleeve

Mô tả sản phẩm

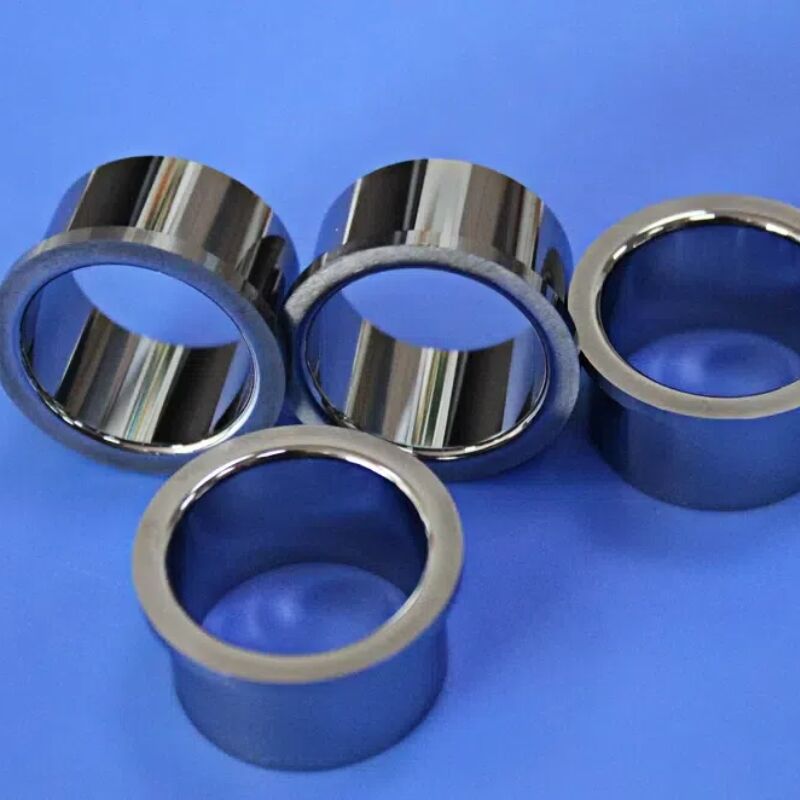

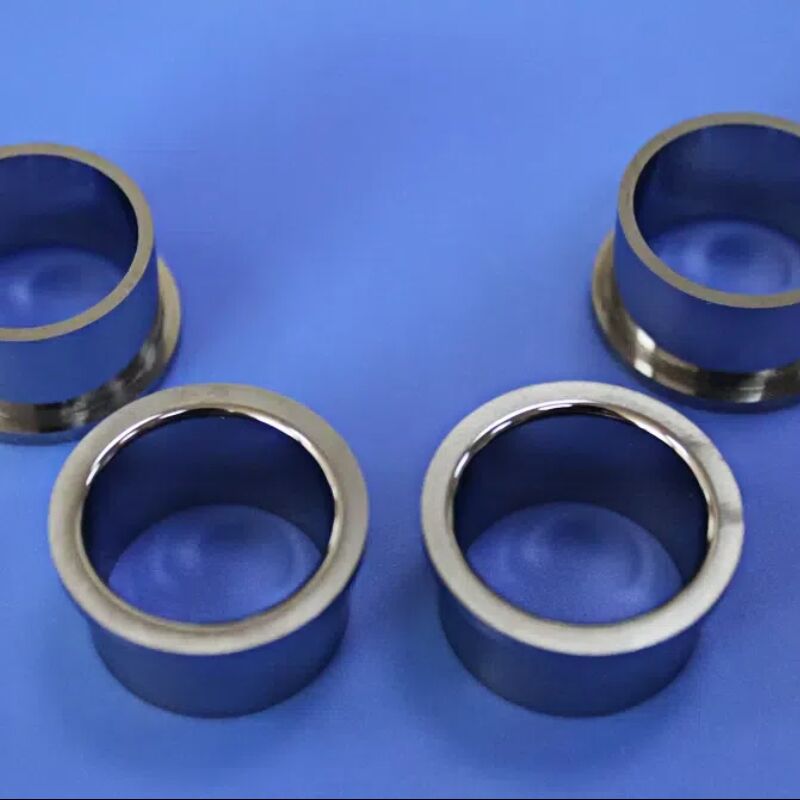

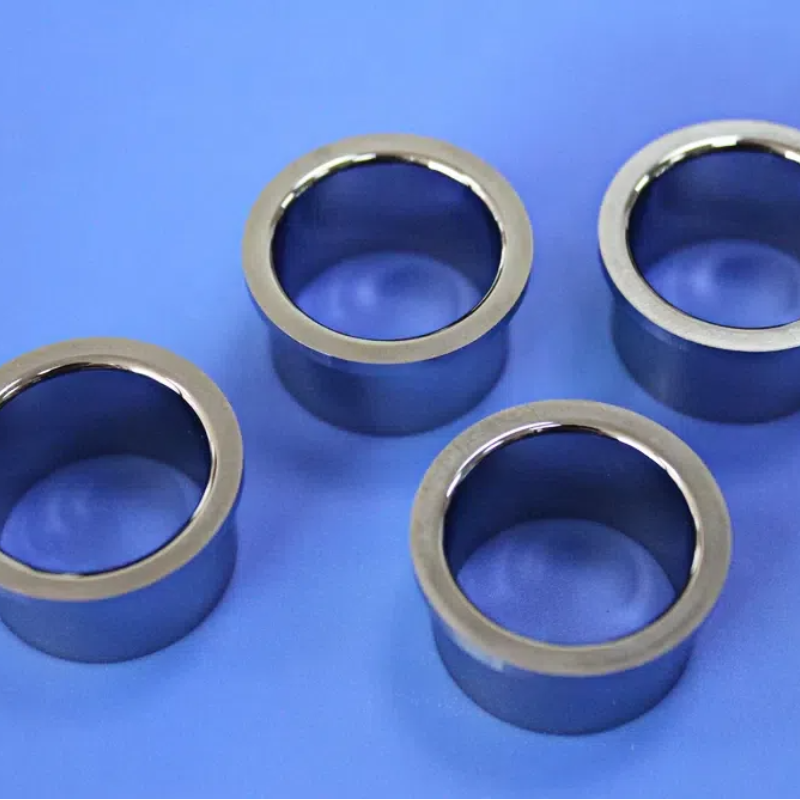

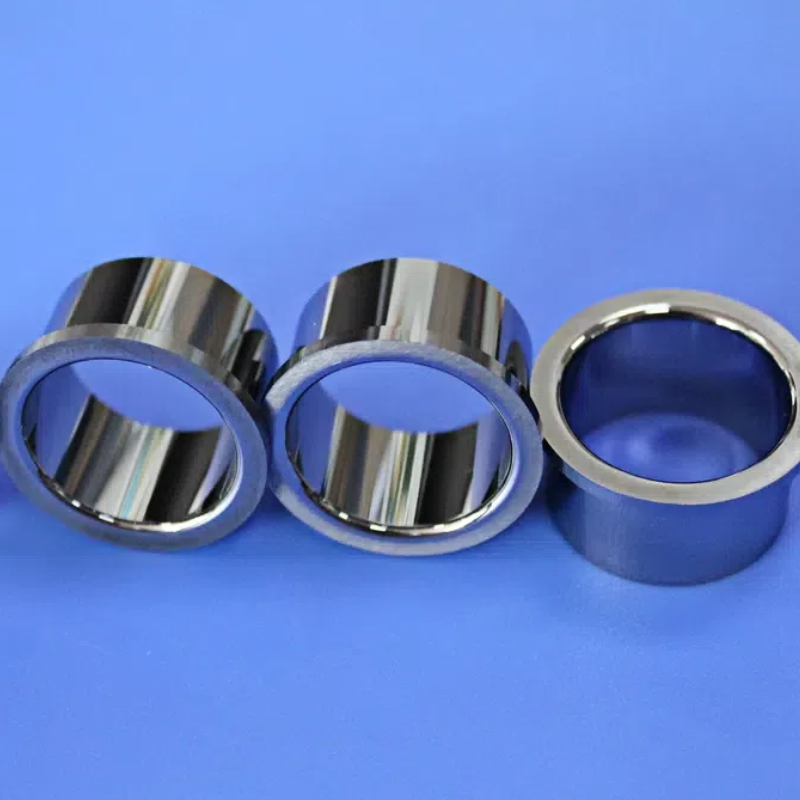

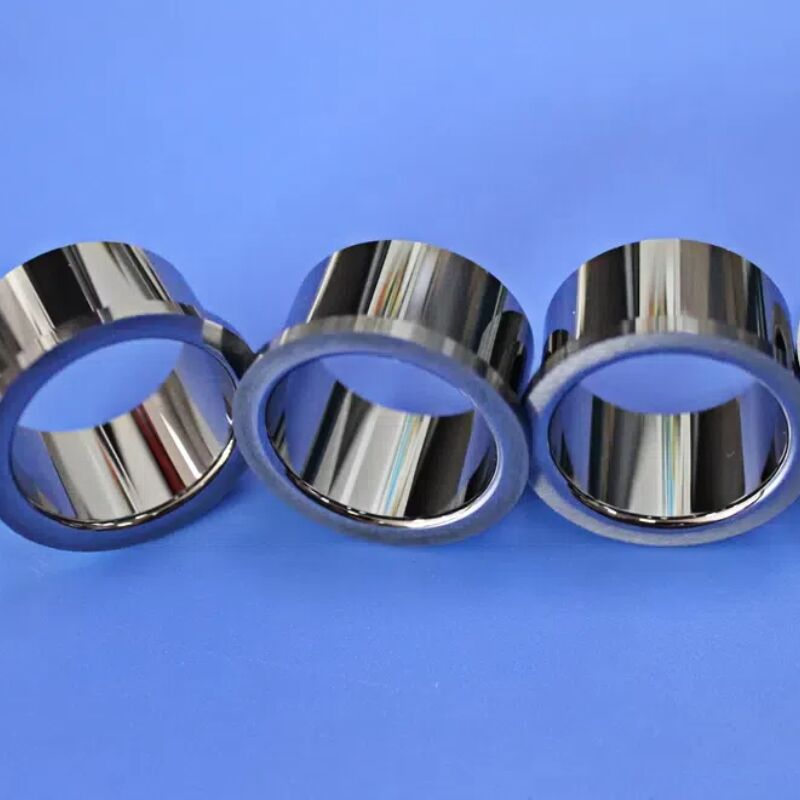

Non-Magnetic Alloy Center Rings
Precision Machined Rings for Shielding, Spacing & Mounting
Our precision-machined center rings offer zero magnetic interference, excellent dimensional stability, and corrosion resistance for use in electronics, medical devices, and research equipment. Custom sizes and materials available.
Why Choose Our Non-Magnetic Rings?
  • Guaranteed Non-Magnetic Performance: Manufactured from carefully selected copper-nickel, aluminum-bronze, or other non-ferrous alloys, these rings are inherently free from iron and cobalt. They ensure zero magnetic attraction (permeability µ ≈ 1.0) and will not disrupt sensitive magnetic fields.
  • Superior Machinability & Precision: Unlike brittle alternatives like ceramics, our non-magnetic alloys can be machined to exceptionally tight tolerances with excellent surface finishes. We achieve precise IDs, ODs, and parallelism (±0.005mm standard, tighter on request).
  • Excellent Corrosion Resistance & Conductivity: Many of our alloy options offer good to excellent resistance to corrosion from moisture, chemicals, and salts. Certain alloys also provide beneficial electrical or thermal conductivity.
  • Lightweight & Cost-Effective Alternative: Compared to dense tungsten-based non-magnetic materials, our alloy rings offer a favorable strength-to-weight ratio and are often more economical, especially for larger diameters.
Technical Specifications
We provide standard and fully custom-machined rings. Below are our common capabilities.
Parameter Specification / Standard Offering
Primary Materials Cupronickel (e.g., C71500), Aluminum Bronze, Non-Magnetic Stainless Steels (e.g., 316L), Other Engineered Non-Ferrous Alloys
Key Properties Non-Magnetic (µ ≈1.0), Good Machinability, Corrosion Resistant, Electrically Conductive (material dependent)
Standard Diameter Range Inner Diameter (ID): From 2mm | Outer Diameter (OD): Up to 300mm
Standard Thickness/Width From 1mm to 50mm
Standard Tolerances ID/OD: ±0.02mm | Thickness: ±0.01mm | Can achieve ±0.005mm for critical dimensions
Surface Finish Standard Machined: Ra 1.6 μm | Fine Machined: Ra 0.8 μm or better
Additional Features Can be supplied with grooves, threads, holes, or special coatings as per print
Target Applications & Industries
These versatile rings serve as crucial components across a wide range of high-tech fields.
Industry Typical Use Cases
Electronics & Semiconductor RF Shielding Gaskets, Vacuum Chamber Spacers, Sensor Mounting Rings within production equipment. Prevents eddy currents and magnetic interference.
Medical & Diagnostic Imaging Non-Magnetic Hardware, Spacers, and Supports inside MRI and CT scanners. Ensures patient safety and image fidelity.
Aerospace & Defense Shielding Rings, Conductive Bushings, and Structural Spacers in guidance systems and avionics where magnetic signature must be minimized.
Research & Instrumentation Sample Holders, Collimators, and Mounting Rings in electron microscopes, spectrometers, and physics experiments.
General Precision Engineering Insulating Spacers, Alignment Rings, and Wear-Resistant Bushings in any machinery where non-magnetic properties are specified.
Why Source From Us?
  • Material Expertise: We guide you to the optimal alloy (CuNi, Al Bronze, etc.) balancing non-magnetic properties, strength, corrosion resistance, and budget for your specific case.
  • Precision Manufacturing Focus: We specialize in turning simple ring specifications into high-precision, ready-to-install components that fit perfectly the first time.
  • Full Customization & Support: We manufacture to your exact blueprint. Provide a sketch, drawing, or CAD file, and we handle the rest.
